VFC
The VFC is a 2 or 4 pipe fan coil unit.
The fan coil unit VFC has been specifically designed for hotels and office buildings with strict acoustic requirements. It offers versatile possibilities for design of air distribution systems. Installation in sills
2-pipe system for cooling only or heating only (VFC-./2)
4-pipe system for cooling and heating (VFC-./4)

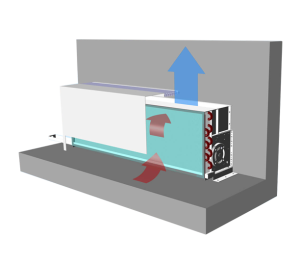

The tangential fan of the VFC draws in air from the room on the underside of the unit. This air passes through a heat exchanger (cooling or heating) and is then returned into the room. Output control is waterside using valves.
- Low-noise operation.
- Insulation of the unit suitable for operation with 6° C cooling water.
- Energy-saving fan operation
- Maintenance-friendly design. Motor, impeller and heat exchanger are accessible from below.
- Low installation depth of only 165mm
- Highly efficient EC and AC motors with low energy consumption (SFP 200 W/(m³/s))
- Excellent aerodynamic integration of fan and large area heat exchanger for high caloric output 30...75 Wth/Wel with low sound level
- Very smooth running and low sound level thanks to vibration isolated tangential fan and low noise slide bearing
- Heat exchanger for efficient room heating via natural convection
- Fan with maintenance free, low noise slide bearings for long service life
- Air guiding elements for patented, optimised LTG mixed/displacement air ventilation, adjustable to a variety of room geometries (optional)
