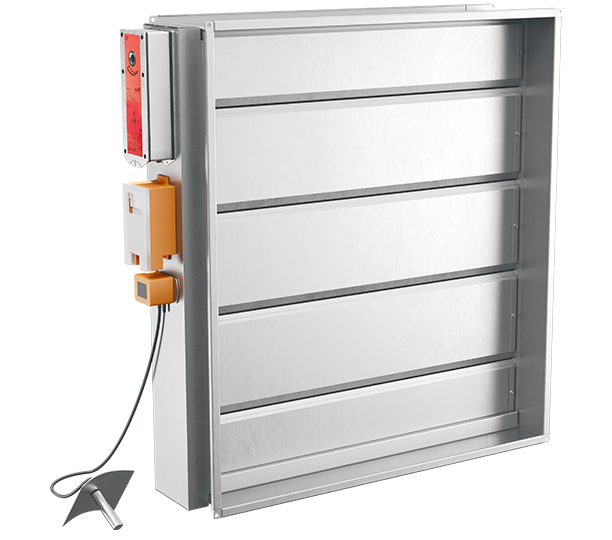

RABR-VAP
E60/E120-S rated fire damper with pressure regulation control.
Bevent Rasch has developed a fire damper for fire resistance classes E60S / E90S / E120S which is also used for constant pressure retention in all types of ventilation plants whilst providing full protection against the spread of smoke.
Damper in combination with walls or joists for fire-sectioning of heating, ventilation and air conditioning installations in buildings in accordance with the harmonised European Standard EN 15650:2010. Smoke spread is prevented when the damper system design in accordance with the associated documentation, assembly, and fitting instructions is used in combination with smoke detectors and the MRB (or equivalent) monitoring system. No further measures against the spread of smoke are required. As the damper also functions as a constant pressure retention damper, both these functions are combined in the same damper. This saves both time, space and money for installations in, for example, hotels, office and shopping complexes, where both these functions need to be solved.
- Fire resistance class E60S / E90S / E120S
- Sizes from 200 x 200 mm to 1500 x 1500 mm
- Prefitted safety actuator 24V
- Slip joint connection, or Flange connection
- Duct- or wall-mounted
- Easy pressure retention
- CE-marked building product in accordance with 15650:2010
